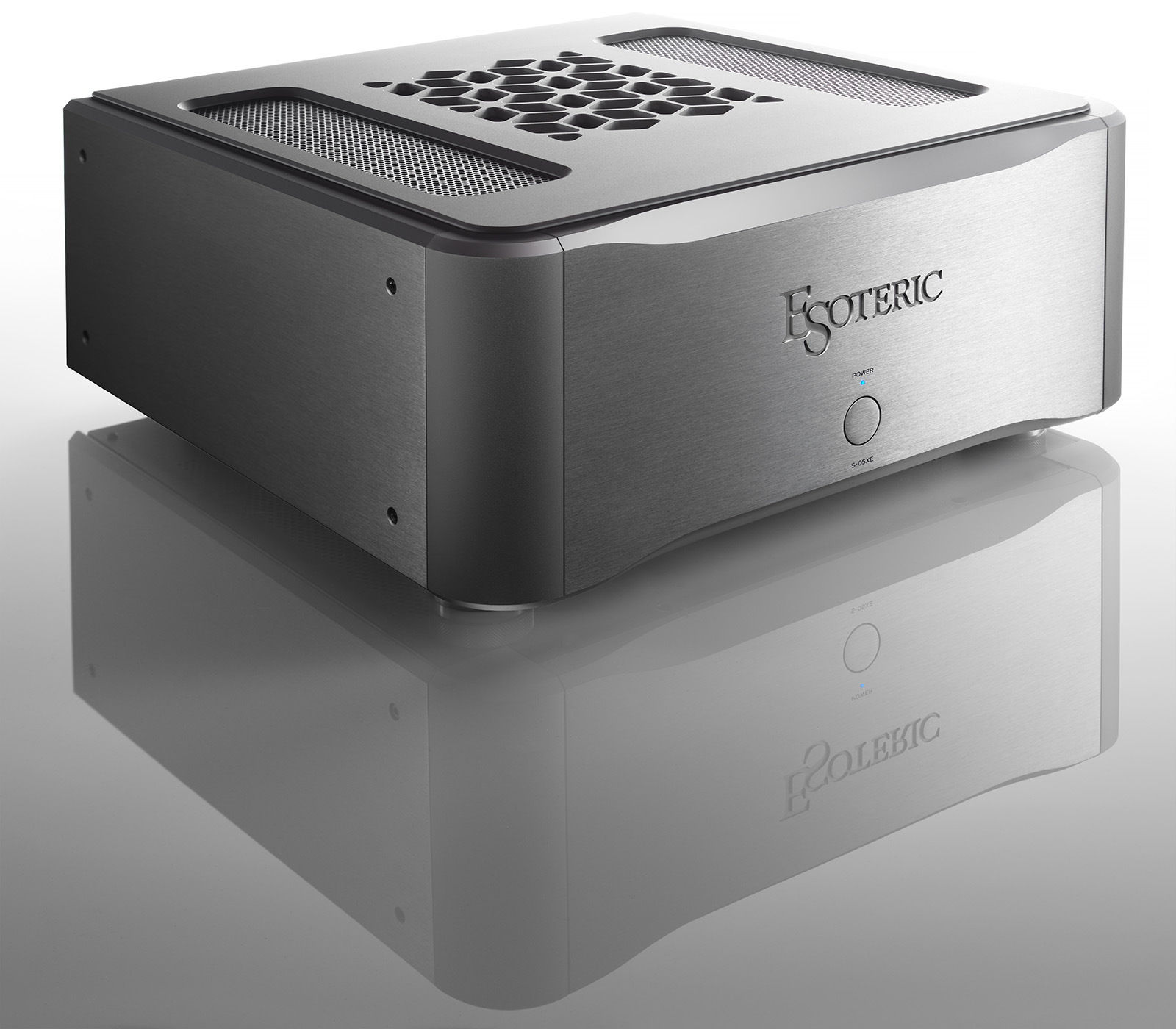

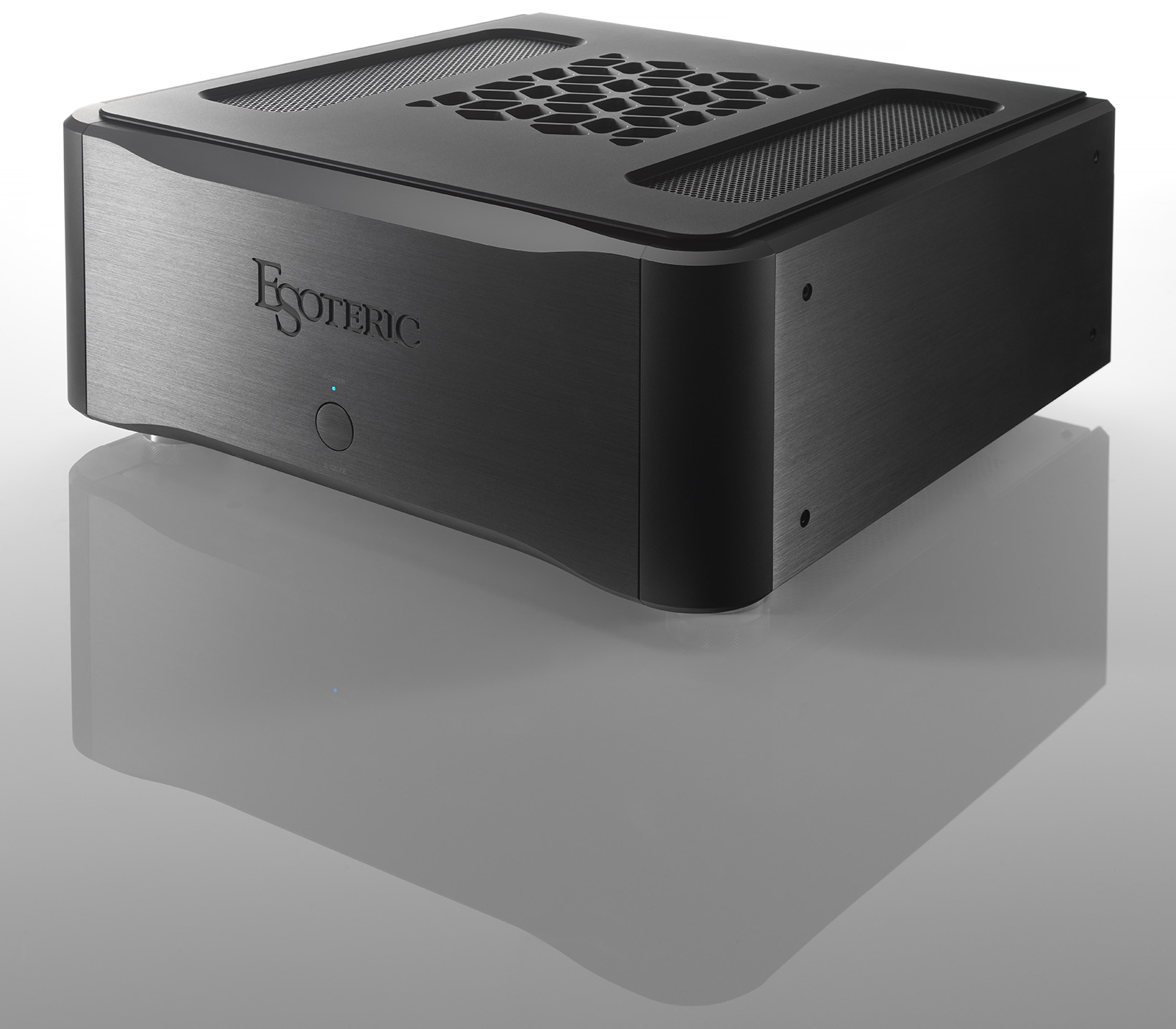

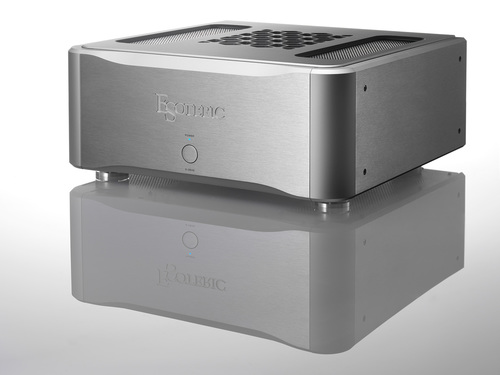

Refined with cutting-edge technology, the S-05XE sets a new standard for Class A stereo amplifiers. It delivers the transparency and precision unique to Class A amplifiers, combined with the dynamic scale characteristic of Esoteric products. Experience a deep, three-dimensional soundstage.

Inheriting the design philosophy of the Grandioso S1X, this 30 W per channel Class A amplifier embodies the "aesthetics of subtraction" through advanced engineering down to the finest detail. A simple, straightforward circuit design enables rich harmonic reproduction while reducing internal impedance for effortless speaker control. The newly designed “Fully Symmetrical Balanced Input Buffer Amplifier” further enhances signal purity.

The soundstage expands seemingly without limit and the key lies in its powerful power supply architecture.
The S-05XE maintains its large-scale, dual-mono configuration across all stages, including the power supply smoothing circuit. It now incorporates a large toroidal core power transformer with a 1,000 VA power supply capacity. The power supply smoothing circuit has been updated with numerous unique technologies, producing a thrilling, scaled-up sound.

The S-05XE is a pure Class A amplifier featuring a powerful three-parallel push-pull configuration of bipolar transistors. It delivers 30 W per channel into 8 Ω (Class A), 60 W per channel into 4 Ω, and 120 W into 8 Ω (BTL). In practice, its performance far surpasses these figures, creating an impressive sense of scale and authority that belies its rated output.

The S-05XE’s exceptional sound quality vividly differentiates the timbre of each instrument, bringing music to life with dynamic energy and realism. This is achieved through the philosophy known as the “aesthetics of subtraction,” realized through advanced engineering techniques. With its pure single-ended design, signals take the shortest path. This minimalist design philosophy preserves the most vital harmonics in music, allowing it to be rendered with rich expression. The phase compensation circuit uses a simple, single-pole configuration, and the final stage is coil-less. Negative feedback (NFB) is minimized to prevent loss of dynamic energy.

Class A amplifiers inherently generate significant heat, stabilizing the temperature of the amplifier block is essential to achieving consistently high sound quality.
In a unique layout, all transistor elements are arranged in a single row at the lowest point of the amplifier block, where temperature variation is minimized. This ensures that all devices operate under identical thermal conditions. Comprehensive temperature management across the entire circuit enables optimal performance, with idle current stabilizing rapidly after power-up, allowing the S-05XE to deliver peak performance almost immediately.

The S-05XE employs high-fidelity components and minimizes internal impedance to deliver exceptional driving capability. This allows it to exert firm control over large-diameter speaker woofers and drive them effortlessly to their low-frequency limits. The PCB pattern utilizes 105 μm-thick copper conductors, while extra-thick gauge cables are securely fastened using bolt-mounted terminals rather than conventional clip-on connectors, significantly reducing contact resistance. In the drive stage, eight bus bars made from 1.0 mm-thick, high-purity OFC are employed. The speaker output section further adopts MOSFET switches to eliminate mechanical contacts and maintain signal integrity.

The S-05XE delicately renders the subtle gradation between silence and musical climaxes. A key contributor to its expressive low-level resolution is the newly designed, fully symmetrical balanced input buffer amplifier. This circuit converts all incoming music signals from upstream components into balanced signals before they reach the amplification stage, effectively eliminating common-mode noise.
In the XE model, the positive/negative and left/right balanced circuits are laid out in perfect symmetry to enhance operational accuracy. In addition, the power-supply smoothing circuits are independently designed for each channel, further refining overall sound quality. MOSFET switches, known for their minimal tonal coloration are used at all switching points within the audio signal path.

A photocoupler electrically isolates the input buffer amplifier from the control circuitry, further enhancing audio signal purity.

ES-Link Analog is an ideal signal transmission method that uses "current" instead of the conventional "voltage." Esoteric developed this method to improve the fidelity of signals transmitted from preamplifiers to power amplifiers. It transmits music energy purely from the preamplifier to the power amplifier using a current level approximately 100 times higher than that of conventional voltage transmission. Since it is unaffected by the impedance of the connecting cable, ES-Link Analog maintains an extremely high degree of signal integrity between the two components. Experience powerful, three-dimensional sound that is vividly lifelike, as if you were monitoring the performance directly from the analog console in the recording studio.

In Class A amplifiers, which demand a constant supply of high current, the power supply is the most critical element. In the XE model, this foundation has been significantly enhanced beyond the already powerful original design, delivering dynamic musical expression fully worthy of a true high-end amplifier.

The S-05XE features a newly developed 1,000 VA toroidal-core power transformer characterized by low leakage flux and exceptionally high transient response. By employing a transformer with current-supply capacity that far exceeds the requirements dictated by the amplifier’s rated specifications, the S-05XE achieves outstanding responsiveness to sudden changes in current demand. The result is a dynamic, open, and effortlessly expressive sound.
To further prevent any degradation in sound quality, the transformer is bare-mounted without an enclosure, minimizing mechanical influence and vibration.

The power-supply smoothing circuit adopts a fully independent left- and right-channel dual-mono configuration rather than a conventional shared design, effectively eliminating mutual interference. This architecture delivers exceptional channel separation and resolution.
In the XE model, the power-supply smoothing circuitry has been comprehensively redesigned to further enhance left/right independence and achieve performance approaching that of a monoblock amplifier. Grandioso-grade, high-fidelity custom capacitors are employed throughout. Each channel features a dual-mono, parallel configuration using four 10,000 μF capacitors, ensuring stable energy delivery and uncompromised musical dynamics.

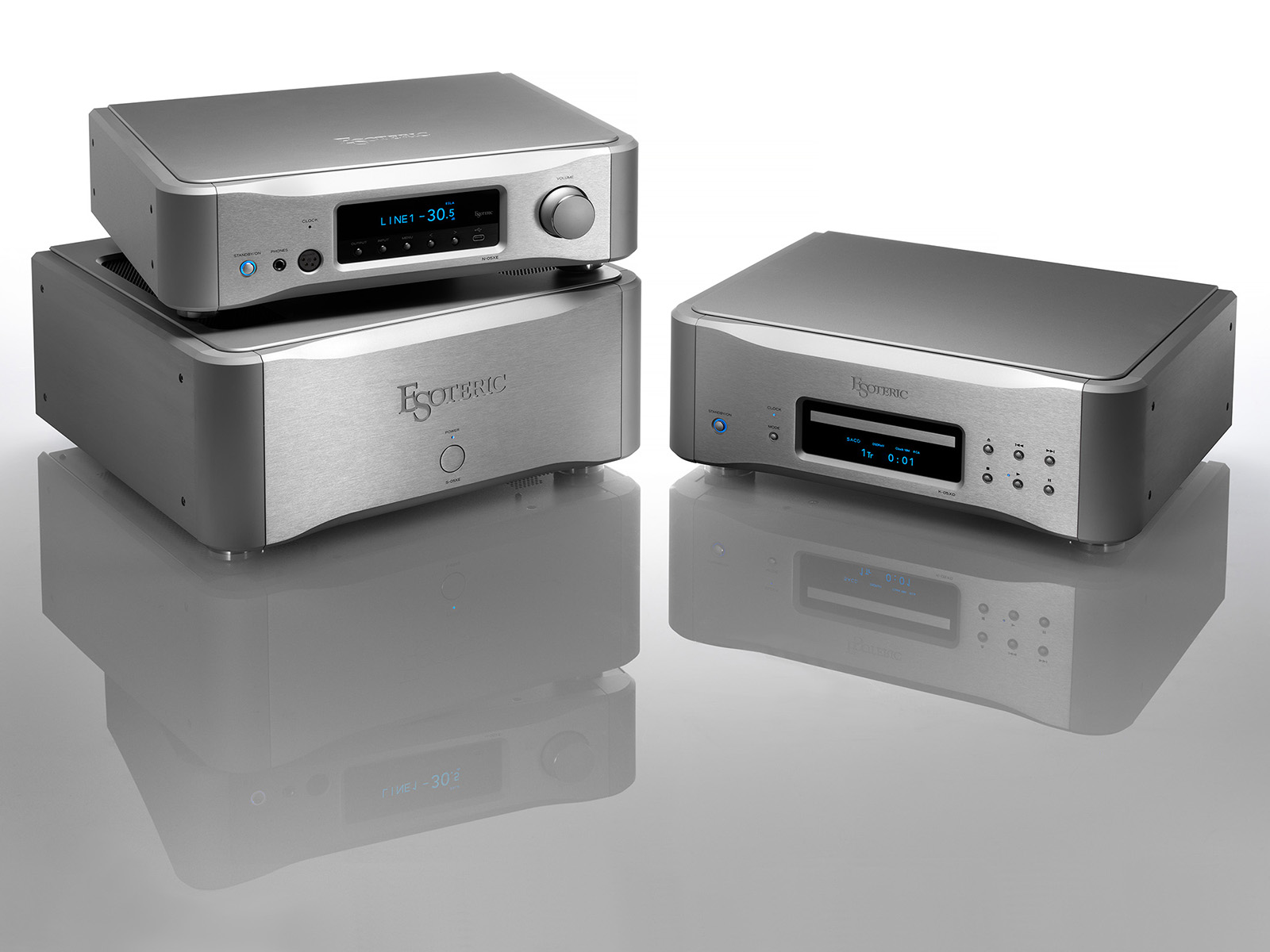

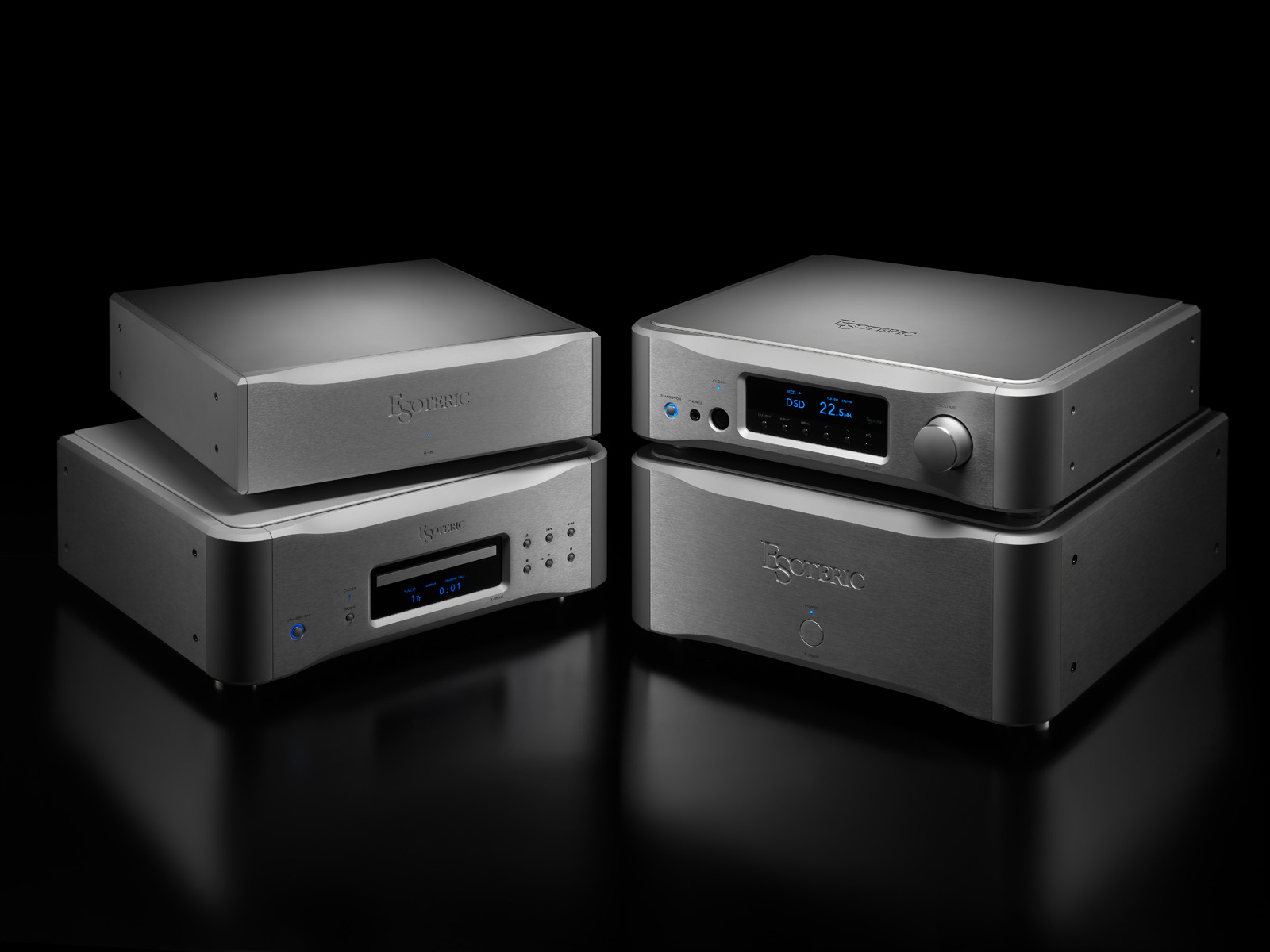

Complete your high-end system with just two components: the S-05XE and the N-05XE network DAC preamplifier. Simply select speakers that match your personal taste. Enjoy a refined and luxurious musical lifestyle, free from equipment complexity while experiencing compelling sound delivered through the ES-Link Analog connection.

The S-05XE offers flexible system expansion, allowing two units to be configured as a multi-amplifier system or a single unit to be used in standard stereo operation. Mode switching enables BTL drive for higher output or bi-amp operation for enhanced sound quality when used with multi-way loudspeakers featuring separate high-frequency (HF) and low-frequency (LF) inputs.

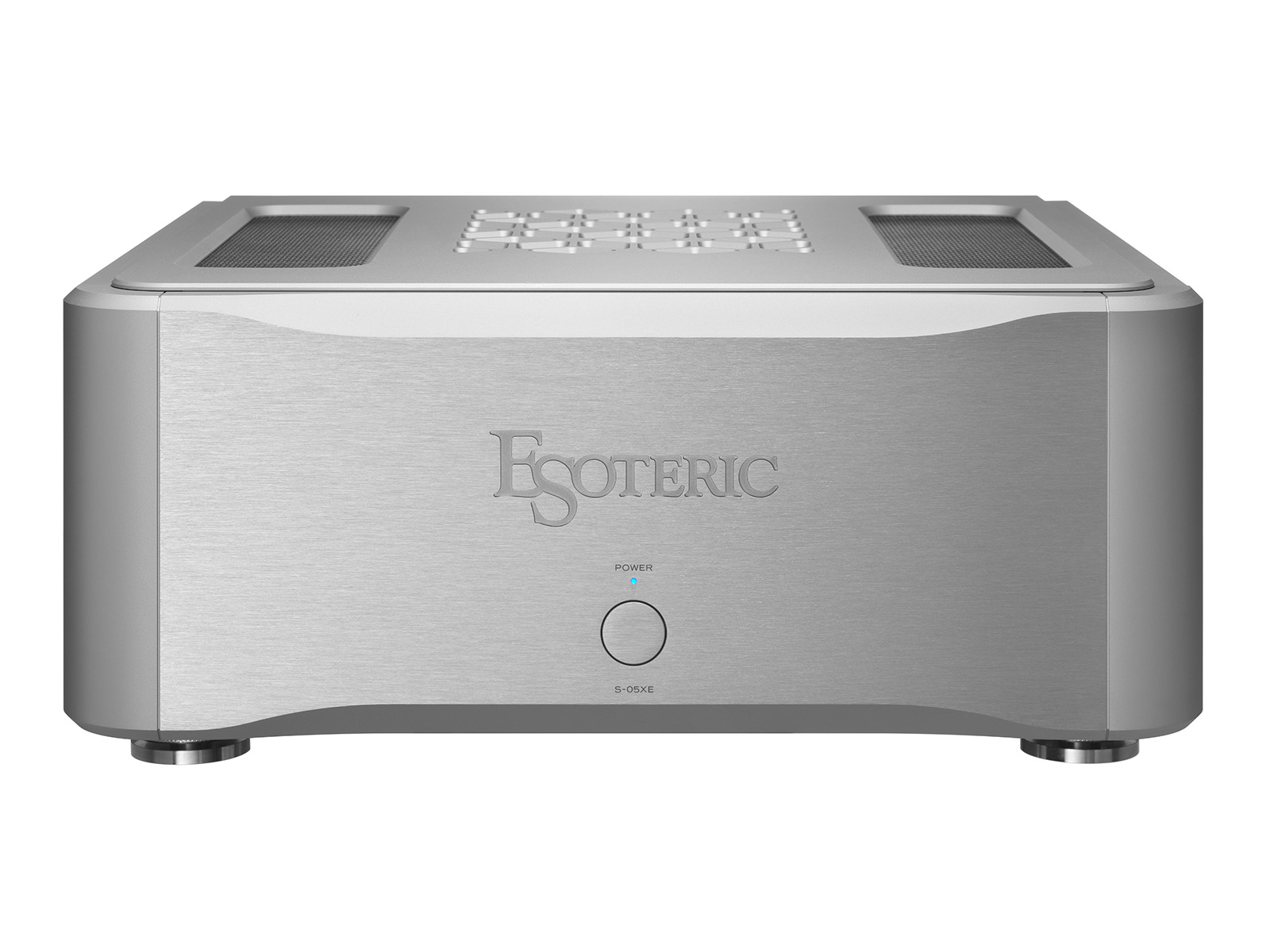

The S-05XE chassis was designed with one goal in mind: to reproduce the master sound. Every aspect of its construction is designed to optimally control vibrations that can affect sound quality. Its mechanical engineering rivals that of a Formula 1 car, achieving an ideal balance between rigidity and flexibility. The chassis’ clean, understated form stands as a testament to its uncompromising design philosophy.

The enclosure prioritizes rigidity and makes extensive use of solid aluminum blocks to achieve a thoroughly non-resonant structure. In contrast, the top panel employs a semi-floating design to promote an open and natural sound.
The isolation feet incorporate a special structure that reduces mechanical stress and further enhances sound quality. In addition, the amplifier block’s large heat sink features a wave-shaped profile that disperses peak resonance in the fins, effectively suppressing unwanted vibration.

The XE model’s top panel incorporates heat-dissipation vents inspired by the Dual Honeycomb Grille motif of the brand’s iconic Grandioso amplifier series. This meticulous design, characteristic of true high-end amplifiers not only serves a functional purpose but also heightens the pleasure of the music listening experience.
