מגבר פאוור AUDIO RESEARCH REFERENCE 160S

ה-Reference 160S של Audio Research הוא מגבר סטריאו מנורות מהשורה הראשונה, שנועד להציע את חוויית ההאזנה האנלוגית האולטימטיבית. הוא מספק 140 וואט לערוץ ב-Class AB, באמצעות ארבע שפופרות KT150 לכל צד, עם עיצוב ייחודי הכולל מד VU מואר “שקוף” המשווה לו מראה מודרני ואלגנטי.
הטכנולוגיה כוללת Auto-Bias חכם, אפשרות בחירה בין מצב Triode ו-Ultralinear להתאמה לאופי הסאונד הרצוי, ורכיבים באיכות גבוהה במיוחד. התוצאה היא צליל עשיר, מפורט, טבעי מאוד, עם שליטה מלאה בבס ובמה סונית עמוקה.
מתאים לאוהבי סאונד שמחפשים רגש, עוצמה ודיוק, מבלי לוותר על עיצוב מרהיב.
מחיר: 114,000 ₪
משלוח חינם
משלוח חינם: 0 ₪
אחריות: 3 שנים לא כולל מנורות
זמן אספקה: 30 ימים , קיימת אפשרות לאיסוף עצמי
למה לקוחות קונים אצלנו:
  • אחריות: 3 שנים לא כולל מנורות
  • משלוח חינם, קניה מאובטחת ושירות לקוחות מעולה
3 שנים לא כולל מנורות חודשי אחריות
משלוח חינם משלוח חינם
קניה בטוחה

מידע נוסף





The Reference 160S stereo power amplifier follows in the footsteps of the internationally acclaimed REF160M monoblock power amplifier, which has won multiple amplifier-of the-year honors from publications such as Stereophile, Hi-Fi+, and others.





GhostMeters™

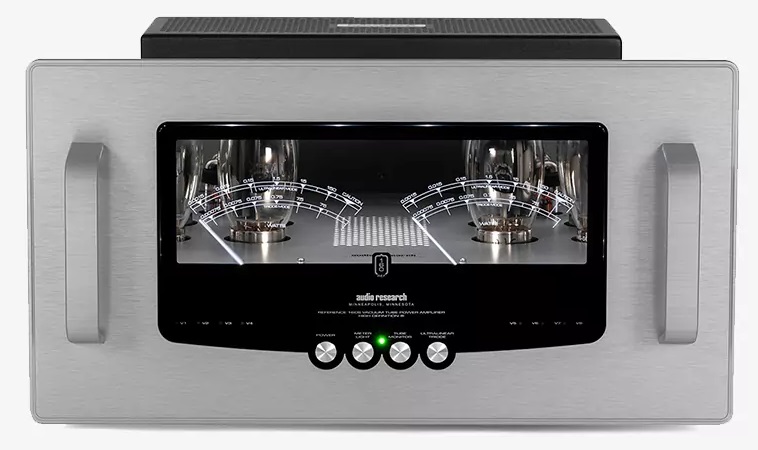

REF160S carries-over the stunning look of the 160M, with dual GhostMeters™ that float in front of the eight KT150 output power tubes.

Also continued is the the feature set introduced in the 160M, including a proprietary auto-bias circuit, switchable Triode or Ultralinear modes of operation, balanced and single-ended inputs, and an output tube monitoring mode. The 160S also uses a four-layer circuit board, allowing music to emanate from a jet-black background.





With a weight of 100 lbs. the REF160S distills the astonishing resolution, dynamic impact, musical purity and finesse of the 160M into one beautiful and attainable chassis. It was designed for the music lover in all of us.





REF160S SYSTEM


TECHNICAL SPECIFICATIONS


Power Output

140 watts continuous from 20Hz to 20kHz. 1kHz total harmonic distortion typically 1% at 140 watts, below 0.04% at 1 watt. (Note that actual power output is dependent upon both line voltage and “condition” i.e.: if power line has high distortion, maximum power will be affected adversely, although from a listening standpoint this is not critical)

Power Bandwidth

(-3dB Points) 5Hz to 70kHz

Frequency Response

(-3dB points at 1 watt) 0.5Hz to 110kHz

Input Sensitivity

2.4V RMS Balanced for rated output. (25.5 dB gain into 8 ohms)

Input Impedance

300k ohms Balanced; 100k ohms Single-ended

Output Polarity

Non-inverting. Balanced input pin 2+ (IEC-268)

Output Taps

4, 8, 16 ohms

Output Regulation

Approximately 0.6dB 16 OHM LOAD TO OPEN CIRCUIT (Damping factor approximately 14)

Overall Negative Feedback

14dB

Slew Rate

13 volts/microsecond

Rise Time

2.0 microseconds

Power Requirements

105-130VAC 60Hz (210-250VAC 50Hz) 875 watts at rated output, 700 watts in Triode mode, 500 watts at “idle”, 3.6 watts off

Tubes Required

4 matched pair KT150 (Power output V1-4); 4 6H30 (Gain stage V5 and V6)

Dimensions

Width  19.0” (48.26 cm)

Height 10.25” (26 cm)

Depth  21.5” (54,61 cm)

With Handles and Connectors: 24” (60.96 cm)

Weight

100lbs
